INDMEM SAS‑Trive HDD Docking Station
INDMEM SAS‑Trive HDD Docking Station User Manual
This official user manual covers installation, disk formatting, partition setup and port introduction for INDMEM SAS‑Trive HDD docking station, which works with 2.5‑inch and 3.5‑inch SAS hard drives over USB3.0 interface. Please download the complete PDF manual from the top right corner.
INDMEM SAS‑Trive HDD docking station is single‑bay SAS hard drive dock, supports 2.5/3.5‑inch SAS HDD for data transfer via USB3.0 interface.
Product Specifications
Product Name: INDMEM SAS‑Trive HDD Docking Station
Supported Drive: 2.5 / 3.5‑inch SAS HDD
Bay Quantity: One bay
Internal Interface: SAS
Transfer Interface: USB3.0
Material: Plastic
Function: Hard disk data transfer
Dimension: 129*75*57 mm
Supported OS: Windows XP /7 /8 /10, Mac OS

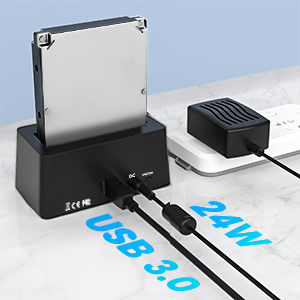

Port Description

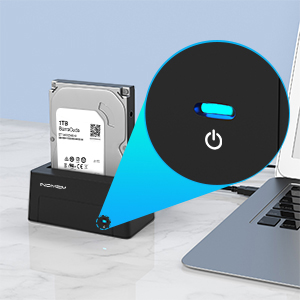

Power Indicator: Power status LED
USB3.0: Data transmission port connect to computer
DC‑in: Power adapter input port
ON/OFF Switch: Hardware power switch
Installation Steps

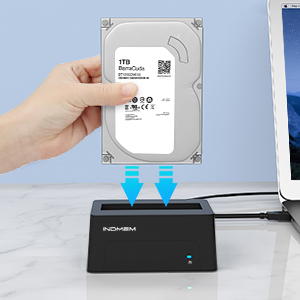

- 1. Insert SAS hard disk into docking station.
- 2. Connect USB3.0 cable between docking station and computer.
- 3. Plug in power adapter, toggle ON/OFF switch on rear panel. Power indicator lights up. Computer will auto‑detect hardware.
Important Notes
Used hard disk: The new drive will appear in computer for direct read‑write.
Brand‑new hard disk: Go to Disk Management to finish formatting before use.
New Hard Disk Format & Partition
1. Right‑click Computer → Manage → Disk Management, locate the newly‑connected hard disk.
2. Right‑click unallocated space and select New Simple Volume, follow wizard steps.
3. Partition style selection: Choose MBR if disk capacity ≤2TB; choose GPT if disk capacity ＞2TB.
4. Set partition size and click Next to complete partition.
5. After finishing, the new hard drive will show up in Computer and ready for use.
